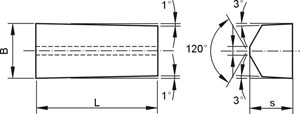

Mecanicamente Presas Inserts-Tipo J2
| Tipo | Dimens?o(mm) | Aproximadamente peso unitário(g) | |||||
| B | s | L | YG6 | YG8 | YT5 | YT14 | |
| J200 | 3.5 | 4.0 | 13.0 | 2.3 | 2.2 | 2.0 | 1.7 |
| J201 | 4.5 | 4.0 | 15.0 | 3.5 | 3.4 | 3.0 | 2.6 |
| J203 | 5.5 | 5.0 | 18.0 | 6.3 | 6.1 | 5.4 | 4.8 |
| J205 | 8.0 | 7.0 | 22.0 | 14.8 | 14.6 | 13.3 | 11.8 |
| J207 | 10.0 | 8.0 | 25.0 | 23.8 | 23.6 | 21.1 | 18.7 |
| J209 | 12.5 | 10.0 | 28.0 | 42.0 | 41.0 | 36.5 | 32.4 |
| J211 | 16.5 | 12.0 | 30.0 | 70.5 | 69.0 | 60.9 | 54.1 |
