PCB Tools Cemented Carbide Rods

PCB tools cemented carbide rods are suitable for making PCB tools such as PCB micro drills.They are are our main products which have a good sale at home and abroad. The diameter is between 1.2~6.5mm and the length is 38.5~110mm. You can find the details as below table and we can also produce them according to the specific requirements. Welcome your inquiry of our products.

The main properties of PCB tools carbide rods as below:
1, Density: 14.0-14.9 g/cm3
2, Composition: WC+Co, WC+TiC+TaC+Co
3, Surface: Sintering surface, Ground surface.
4, can be designed according to customer's requirements.

Different types of carbide rods for PCB tools are as follows: (unit:mm)

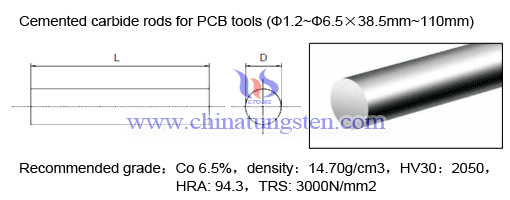

PCB Tools Cemented Carbide Rods (Ф1.2mm~Ф6.5mm)

Cemented carbide rods are suitable for making PCB tools such as PCB micro drills;

Types, Specifications and Tolerances of PCB Tools Carbide Rods (Ф1.2mm~Ф6.5mm)

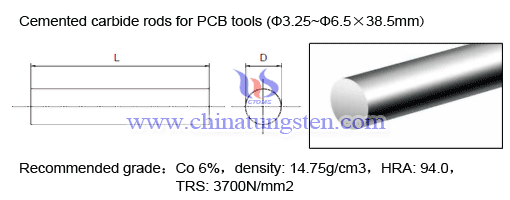

PCB Tools Cemented Carbide Rods(Ф3.25mm~Ф6.5mm)

Cemented carbide rods are suitable for making PCB tools such as PCB micro drills.

Types, Specifications and Tolerances of PCB Tools Carbide Rods (Ф3.25mm~Ф6.5mm)

All the PCB tools cemented carbide rods from Chinatungsten Online are customized.If you have any inquiry of our products, please feel free to contact us with sales@chinatungsten.com, sales@xiamentungsten.com. We are at service you.
