One Straight Coolant Hole Cemented Carbide Rods

The main properties of cemented carbide rods with one straight coolant hole are as follows:(unit:mm)
1. Cobalt Content: 6%~12%;
2 .Density: 14.0-14.9 g/cm3;
3. Hardness: HRA88~HRA92;
4. T.R.S.: 1600~4000 N/mm2;
5. Surface: Sintering surface, Forged surface, Ground surface;

Different sizes of one straight coolant hole cemented carbide rods are as follows: (unit:mm)

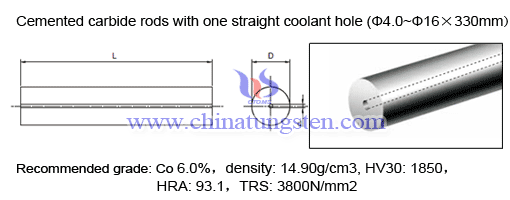

One Straight Coolant Hole Cemented Carbide Rods (Ф4.0mm~Ф16.0mm)

Cemented carbide rods with one straight coolant hole have properties of superior strength, toughness, and wear resistance.

Types, Specifications and Tolerances of One Straight Coolant Hole Rods (Ф4.0mm~Ф16.0mm)

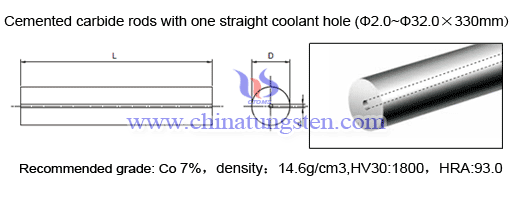

One Straight Coolant Hole Cemented Carbide Rods(Ф2.0mm~Ф32.0mm)

Cemented carbide rods with one straight coolant hole have properties of superior strength, toughness, and wear resistance.

Types, Specifications and Tolerances of One Straight Coolant Hole Rods (Ф2.0mm~Ф32.0mm)

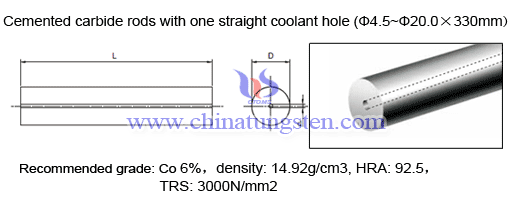

One Straight Coolant Hole Cemented Carbide Rods(Ф4.5mm~Ф20.0mm)

Cemented carbide rods with one straight coolant hole have properties of superior strength, toughness, and wear resistance.

Types, Specifications and Tolerances of One Straight Coolant Hole Rods (Ф4.5mm~Ф20.0mm)

All one straight coolant hole cemented carbide rods from Chinatungsten Online are customized.If you have any inquiry of our products, please feel free to contact us with [email protected], [email protected]. We are at service you.
