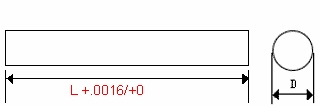

Sol Barreaux en carbure ISO h6 (Pouce)

?
?	?	?	?

Type	D(mm)	L(mm)	TOL(pouce)
Rod.125-1.5G	1/8	1 1/2	+.015~+.035
Rod.125-2G	1/8	2	+.015~+.045
Rod.1875-1.5G	3/16	1 1/2	+.015~+.035
Rod.1875-2G	3/16	2	+.015~+.045
Rod.1875-2.5G	3/16	2 1/2	+.015~+.050
Rod.1875-3G	3/16	3	+.015~+.055
Rod.25-1.5G	1/4	1 1/2	+.015~+.035
Rod.25-2G	1/4	2	+.015~+.045
Rod.25-2.5G	1/4	2 1/2	+.015~+.050
Rod.25-3G	1/4	3	+.015~+.055
Rod.25-3.25G	1/4	3 1/4	+.015~+.060
Rod.25-3.5G	1/4	3 1/2	+.015~+.060
Rod.25-4G	1/4	4	+.015~+.070
Rod.3125-2G	5/16	2	+.020~+.050
Rod.3125-2.5G	5/16	2 1/2	+.020~+.055
Rod.3125-3G	5/16	3	+.020~+.060
Rod.3125-3.5G	5/16	3 1/2	+.020~+.060
Rod.3125-4G	5/16	4	+.020~+.075
Rod.375-2G	3/8	2	+.025~+.055
Rod.375-2.5G	3/8	2 1/2	+.025~+.060
Rod.375-3G	3/8	3	+.025~+.065
Rod.375-3.25G	3/8	3 1/4	+.025~+.070
Rod.375-3.5G	3/8	3 1/2	+.025~+.070
Rod.375-4G	3/8	4	+.025~+.080
Rod.375-6G	3/8	6	+.025~+.105
Rod.4375-2.5G	7/16	2 1/2	+.030~+.065
Rod.4375-2.75G	7/16	2 3/4	+.030~+.065
Rod.4375-4G	7/16	4	+.030~+.085
Rod.4375-4.5G	7/16	4 1/2	+.030~+.090
Rod.4375-5G	7/16	5	+.030~+.095
Rod.5-2.5G	1/2	2 1/2	+.030~+.065
Rod.5-3G	1/2	3	+.030~+.070
Rod.5-3.125G	1/2	3 1/8	+.030~+.070
Rod.5-4G	1/2	4	+.030~+.085
Rod.5-4.5G	1/2	4 1/2	+.030~+.090
Rod.5-5G	1/2	5	+.030~+.095
Rod.5-6G	1/2	6.0	+.030~+.110
Rod.5625-3G	9/16	3.0	+.035~+.075
Rod.5625-3.5G	9/16	3 1/2	+.035~+.080
Rod.625-3G	5/8	3.0	+.035~+.075
Rod.625-3.5G	5/8	3 1/2	+.040~+.085
Rod.625-3.75G	5/8	3 3/4	+.040~+.090
Rod.625-4.125G	5/8	4 1/8	+.040~+.095
Rod.625-5G	5/8	5	+.040~+.105
Rod.625-8G	5/8	8	+.040~+.145
Rod.75-3G	3/4	3	+.045~+.085
Rod.75-3.5G	3/4	3 1/2	+.045~+.090
Rod.75-4G	3/4	4	+.045~+.100
Rod.75-4.5G	3/4	4 1/2	+.045~+.100
Rod.75-5G	3/4	5	+.045~+.110
Rod.75-6G	3/4	6	+.045~+.125
Rod.75-6.5G	3/4	6 1/2	+.045~+.130
Rod.875-4G	7/8	4	+.055~+.110
Rod.1-3G	1	3	+.060~+.100
Rod.1-3.5G	1	3 1/2	+.060~+.105
Rod.1-4G	1	4	+.060~+.115
Rod.1-5G	1	5	+.060~+.125
Rod.1-6G	1	6	+.060~+.140
Rod.1-7G	1	7	+.060~+.155
Rod1.125-4.5G	1 1/8	4 1/2	+.060~+.120
Rod1.125-6G	1 1/8	6	+.060~+.140
Rod1.125-7.5G	1 1/8	7 1/2	+.060~+.160
