Carbure de Tungstène Sceaux

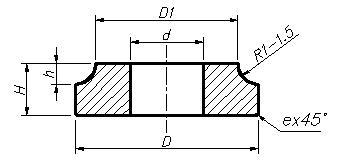

PN

OD (mm)

ID (mm)

H(mm)

e (mm)

D

Tol.

D1

Tol.

d

Tol.

h

Tol.

H

Tol.

e

Tol.

TCP20-HP-10

18.4

+0.8

0

16

+0.7

0

11

+0.2

-0.5

1.5

+0.2

4.5

-0.6

0

0.6

+/-0.2

-12

20.4

18

13

-14

22.4

20

15

-16

24.4

22

17

-18

28.4

24

19

+0.3

-0.8

2.0

5.5

-20

30.4

27

21

-22

32.4

+1.1

0

29

23

-24

34.4

31

+1.0

0

25

-25

35.4

32

26

-28

39.6

35

29

-30

41.6

37

31

+0.4

-0.7

6.5

-32

43.6

39.5

33.5

2.5

-33

44.6

40.5

34.5

0.8

-35

46.6

42.5

36.5

+0.8

0

-38

49.6

45.5

39.5

-40

51.6

+1.5

0

48.5

41.5

-43

55.6

51.5

+1.4

0

44.5

-45

57.6

53.5

46.5

-48

60.6

56.5

49.5

-50

62.6

58.5

51.5

+0.5

-0.8

-53

65.6

62

55

-55

67.6

64

57

-58

72.6

67

60

8

-1.0

0

-60

74.6

69

62

-63

78

+1.9

0

72

65

3.0

+0.3

1.0

+/-0.3

-65

80

75

67

-68

83

78

70

-70

85

80

72

-75

92

85

+1.9

0

77

-80

97

90

82

+0.6

-0.9

85

102.5

+2.3

0

95.5

87.5

10

+1.2

0

-90

109.5

100.5

+2.3

0

92.5

-95

114.5

105.5

97.5

-100

117.5

110.5

102.5

+0.7

-1.1

11

-110

131.5

+2.7

0

123

+2.7

0

113

-120

141.5

133

123
