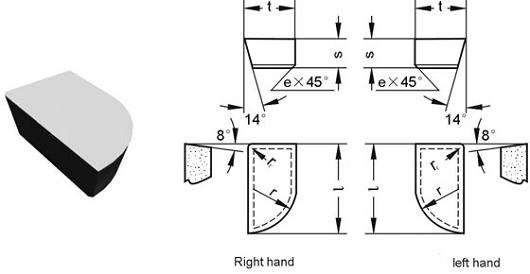

Brasées Conseils-Type A4
Type |
Dimension(mm) |
Poids unitaire environ(g) |
|||||||||
Droit |
à gauche |
l |
t |
s |
r |
rε |
e |
YG6 |
YG8 |
YT5 |
YT14 |
A406 |
/ |
6.0 |
5.0 |
2.5 |
5.0 |
0.5 |
/ |
1.0 |
0.9 |
0.8 |
0.7 |
A408 |
/ |
8.0 |
6.0 |
3.0 |
6.0 |
0.5 |
/ |
1.8 |
1.8 |
1.4 |
1.3 |
A410 |
A410Z |
10.0 |
6.0 |
3.5 |
6.0 |
1.0 |
0.8 |
2.4 |
2.4 |
1.8 |
1.7 |
A412 |
A412Z |
12.0 |
8.0 |
4.5 |
8.0 |
1.0 |
0.8 |
5.0 |
4.9 |
4.2 |
3.9 |
A416 |
A416Z |
16.0 |
10.0 |
5.5 |
10.0 |
1.0 |
0.8 |
10.4 |
10.2 |
8.6 |
8.0 |
A420 |
A420Z |
20.0 |
12.0 |
7.0 |
12.5 |
1.0 |
0.8 |
19.4 |
19.0 |
17.0 |
15.6 |
A425 |
A425Z |
25.0 |
15.0 |
8.5 |
16.0 |
1.0 |
0.8 |
37.0 |
36.4 |
32.5 |
30.0 |
A430 |
A430Z |
30.0 |
16.0 |
6.0 |
16.0 |
1.0 |
0.8 |
36.0 |
35.4 |
30.0 |
27.9 |
A430A |
A430AZ |
30.0 |
16.0 |
9.5 |
16.0 |
1.0 |
0.8 |
54.2 |
53.2 |
47.0 |
43.7 |
A440 |
A440Z |
40.0 |
18.0 |
8.0 |
18.0 |
1.0 |
0.8 |
72.8 |
71.4 |
62.0 |
57.7 |
A440A |
A440AZ |
40.0 |
18.0 |
10.5 |
18.0 |
1.0 |
1.2 |
93.5 |
91.5 |
79.0 |
73.5 |
A450 |
A450Z |
50.0 |
20.0 |
8.0 |
20.0 |
1.5 |
0.8 |
103.0 |
101.0 |
87.0 |
81.0 |
A450A |
A450AZ |
50.0 |
20.0 |
12.0 |
20.0 |
1.5 |
1.2 |
151.0 |
148.0 |
127.0 |
118.5 |
