Cemented Carbide Tool Shank Type

Cemented Carbide Tool Shank Type

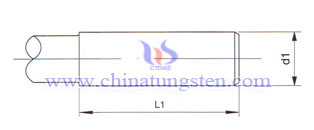

Cemented Carbide Tool DIN6535-HA


dh6	2	3	4	5	6	8	10	12	14	16	18	20	25	32
L1₀⁺²	28				36		40	45		48		50	56	60

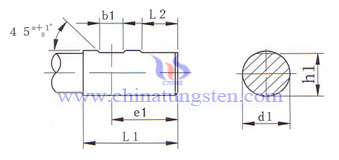

Cemented Carbide Tool DIN6535-Hb

d1 H6	b1 +0.05 0	e1 0 -1	h1 H11	L1 +2 0	L2 +1 0
6	4.2	18.0	5.1	36.0
8	5.5	18.0	6.9	36.0
10	7.0	20.0	8.5	40.0
12	8.0	22.5	10.4	45.0
14	8.0	22.5	12.7	45.0
16	10.0	24.0	14.2	48.0
18	10.0	24.0	16.2	48.0
20	11.0	25.0	18.2	50.0
25	12.0	32.0	23.0	56.0	17.0
32	14.0	36.0	30.0	60.0	19.0

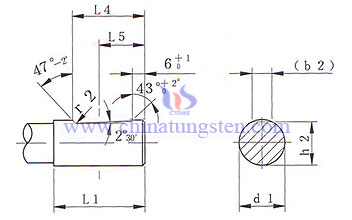

Cemented Carbide Tool DIN6535-HE


d1=6~20mm	d1=25~32mm

d1	(b2)	(b3)	(h2)	(h3)	L1	L4	L5	r2
6.0	4.3		5.1		36.0	25.0	18.0	1.2
8.0	5.5		6.9		36.0	25.0	18.0
10.0	7.1		8.5		40.0	28.0	20.0
12.0	8.2		10.4		45.0	33.0	22.5
14.0	8.1		12.7		45.0	33.0	22.5
16.0	10.1		14.2		48.0	36.0	24.0	1.6
18.0	10.8		16.2		48.0	36.0	24.0
20.0	11.4		18.2		50.0	38.0	25.0
25.0	13.6	9.3	23.0	24.1	56.0	44.0	32.0
32.0	15.5	9.9	30.0	31.2	60.0	48.0	35.0

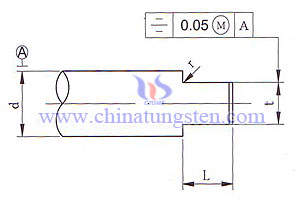

Cemented Carbide Tool Flat tail：

cemented carbide tool

d		t		L	rmax
Larger than	Until	Basic dimensions	Deviation	L	rmax
3	3.75	2.12	0-0.10	6.0	0.2
3.75	4.75	2.65	0-0.10	7.0	0.2
4.75	6	3.35	0-0.12	8.0	0.2
6	7.5	4.25		9.0	0.3
7.5	9.5	5.3		10.0	0.3
9.5	11.8	6.7	0-0.15	11.5	0.4
11.8	15	8.5	0-0.15	13.0	0.4
15	19	10.6	0-0.18	15.0	0.4
19	23.6	13.2	0-0.18	17.0	0.5
