Turning Inserts

Cemented carbide turning inserts are a class of cemented carbide cutters.There are various types of turning inserts manufactured and supplied by Chinatungsten Online.Cemented carbide turning inserts have a lot of applications such as making internal & external turning tools, boring tools, copying turning tools and planing tools;making left & right hand, internal & external end face turning tools with offset shank and so on.

Turning is a metalcutting process used for the generation of cylindrical surfaces. Typically the workpiece is rotated on a spindle and the tool is fed into it radially, axially or both ways simultaneously to give the required surface. The term turning, in the general sense, refers to the generation of any cylindrical surface with a single point tool. More specifically, it is often applied just to the generation of external cylindrical surfaces oriented primarily parallel to the workpiece axis.

Various sizes of cemented carbide turning inserts type 2C are as follows:(unit:mm)

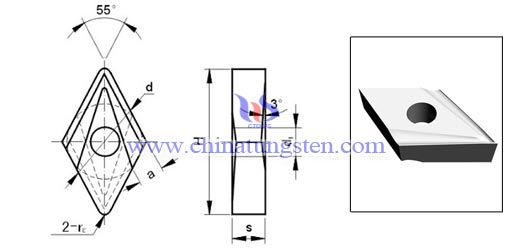

Turning Inserts Type 2C

They are suitable for making turning and thread turning tools for CNC and copying machines.

Types, Specifications and Tolerances of Turning Inserts Type 2C

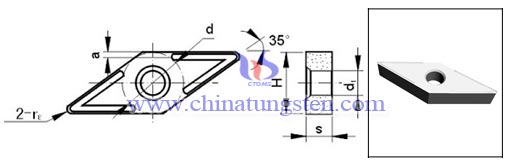

Turning Inserts Type 2V

They are suitable for?making turning tools for CNC and copying machines, with double-sided groove and long cutting edge.

Types, Specifications and Tolerances of Turning Inserts Type 2V

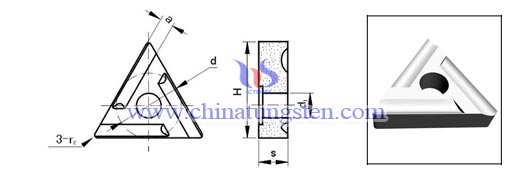

Turning Inserts Type 3A

They are suitable for?making left & right hand, external turning tools and boring tools with offset shank.

Types, Specifications and Tolerances of Turning Inserts Type 3A

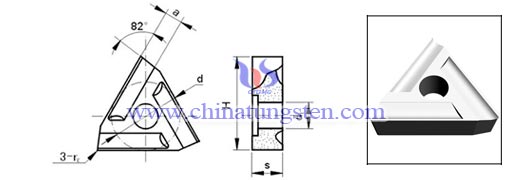

Turning Inserts Type 3C

?They are suitable for making left & right hand, external turning tools and boring tools with offset shank.

Types, Specifications and Tolerances of Turning Inserts Type 3C

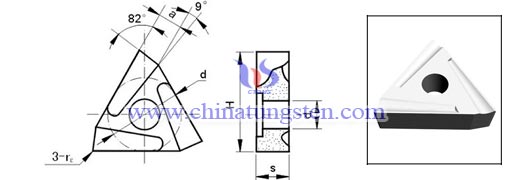

Turning Inserts Type 3D

?They are suitable for making left & right hand, external turning tools and boring tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type 3D

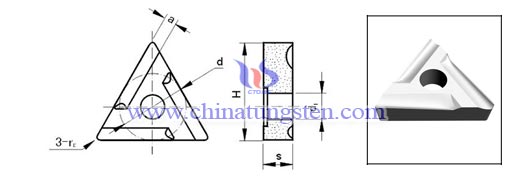

Turning Inserts Type 3F

?They are suitable for making left & right hand, internal & external turning tools with offset shank and small radial stress, partiularly suitable for machining thin and long shafts

Types, Specifications and Tolerances of Turning Inserts Type 3F

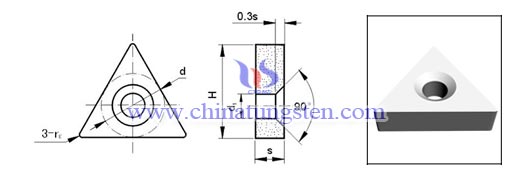

Turning Inserts Type 3N

?They are suitable for making end milling cutters with tool holder, drills with coolant channels, core drills

Types, Specifications and Tolerances of Turning Inserts Type 3N

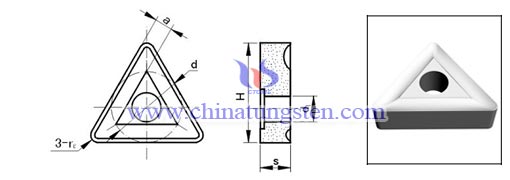

Turning Inserts Type 3V

?They are suitable for making internal and external turning tools, thread turning tools and grooving tools

Types, Specifications and Tolerances of Turning Inserts Type 3V

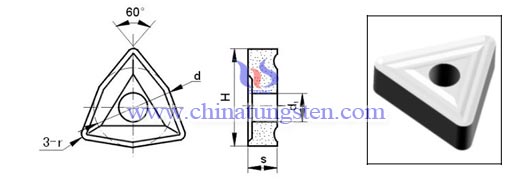

Turning Inserts Type 3W

?They are suitable for making internal and external turning tools, thread turning tools and grooving tools

Types, Specifications and Tolerances of Turning Inserts Type 3W

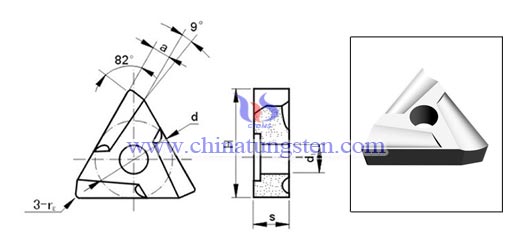

Turning Inserts Type 3Y

?They are suitable for making 90° turning and boring tools suitable for heavy feed roughing

Types, Specifications and Tolerances of Turning Inserts Type 3Y

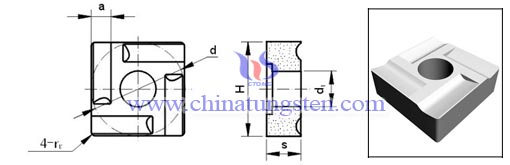

Turning Inserts Type 4A

?They are suitable for making left & right hand, internal & external end face turning tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type 4A

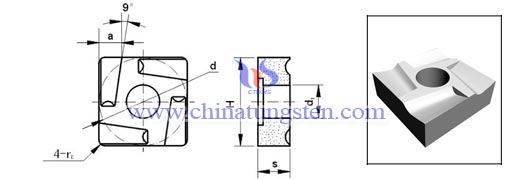

Turning Inserts Type 4D

They are suitable for making 75°, 45° external and plane turning and boring tools with wide groove, suitable for heavy feed machining

Types, Specifications and Tolerances of Turning Inserts Type 4D

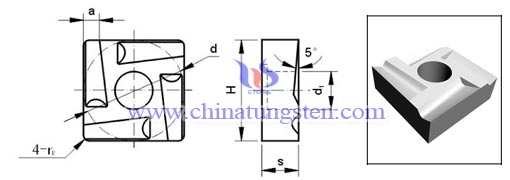

Turning Inserts Type 4F

They are suitable for making left & right hand, internal & external turning tools with offset shank and small radial stress, suitable for machining thin and long shafts

Types, Specifications and Tolerances of Turning Inserts Type 4F

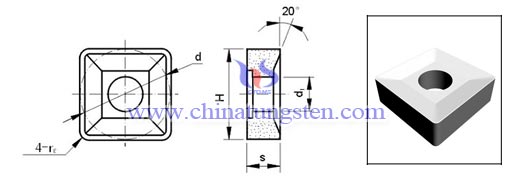

Turning Inserts Type 4G

They are suitable for making cast iron turning tools

Types, Specifications and Tolerances of Turning Inserts Type 4G

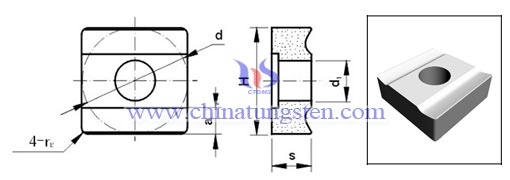

Turning Inserts Type 4H

They are suitable for making internal & external, end face turning tools and internal & external chamfer turning tools

Types, Specifications and Tolerances of Turning Inserts Type 4H

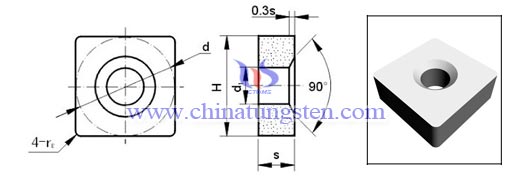

Turning Inserts Type 4N

They are suitable for making left & right hand, internal & external turning and planing tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type 4N

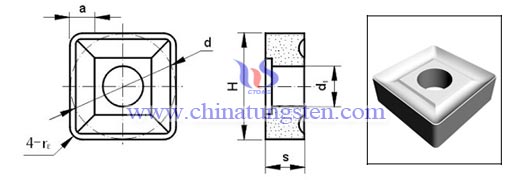

Turning Inserts Type 4V

They are suitable for making left & right hand, internal & external turning and planing tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type 4V

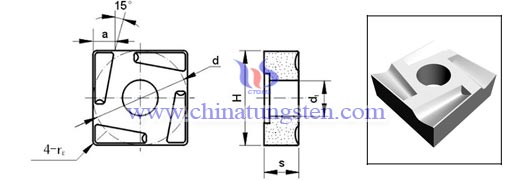

Turning Inserts Type 4Y

They are suitable for making 75°,45° external and end face turning tools and boring tools, particularly suitable for machining bearing steel in bearing industry

Types, Specifications and Tolerances of Turning Inserts Type 4Y

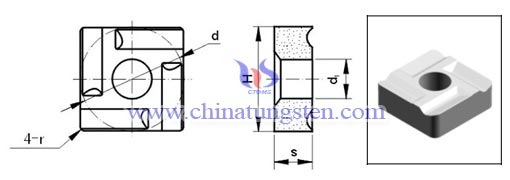

Turning Inserts Type 4KAB

They are suitable for making left & right hand, internal & external end face turning tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type 4KAB

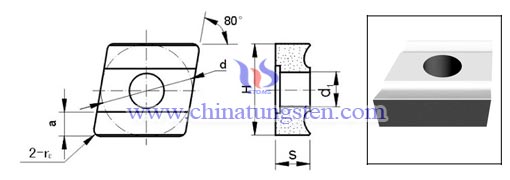

Turning Inserts Type CH

They are suitable for making 90° 75° turning and boring tools with long cutting edge and wide edge angle suitahle for roughing or semi-finishing of multi-stage shafts and mutil-hole parts

Types, Specifications and Tolerances of Turning Inserts Type CH

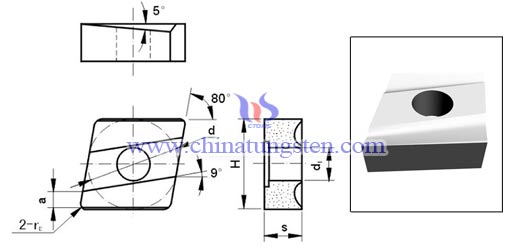

Turning Inserts Type CL

They are suitable for making 94° turning, boring and milling tools with small radial force and good chip break effect

Types, Specifications and Tolerances of Turning Inserts Type CL

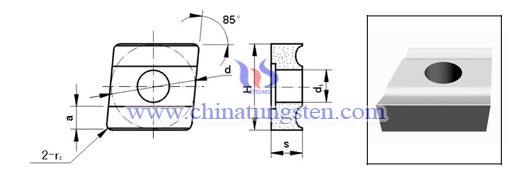

Turning Inserts Type MH

They are suitable for making 90° turning tools. Suitable for intermittent cutting nuder impact condition

Types, Specifications and Tolerances of Turning Inserts Type MH

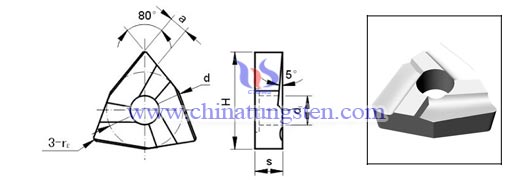

Turning Inserts Type T3F

They are suitable for making left & right hend, internal end external end face turning tools and planing tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type T3F

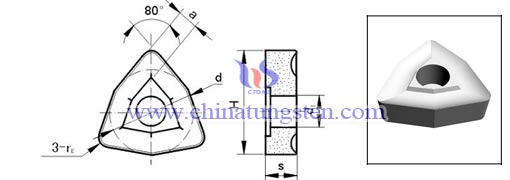

Turning Inserts Type T3V

They are suitable for making internal & external turning tools, boring tools, copying turning tools and planing tools

Types, Specifications and Tolerances of Turning Inserts Type T3V

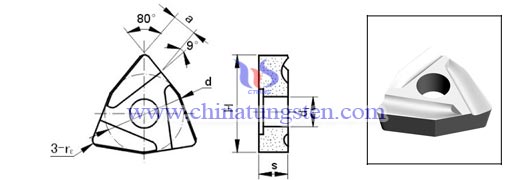

Turning Inserts Type T3Y

They are suitable for making 90° external and internal turning tools far heavy feed roughing

Types, Specifications and Tolerances of Turning Inserts Type T3Y

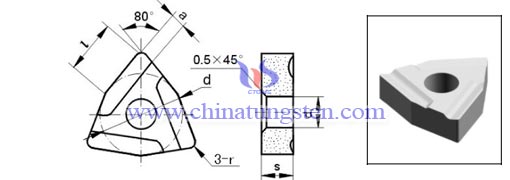

Turning Inserts Type T3KAB

They are suitable for making 90° external and internal turning tools For semifinishing

Types, Specifications and Tolerances of Turning Inserts Type T3KAB

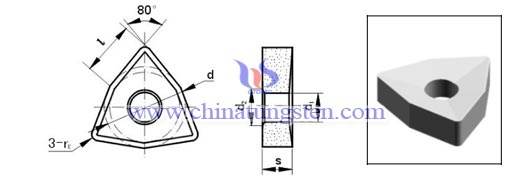

Turning Inserts Type T3KG

They are suitable for internal & external turning tools, boring tods, copying tools and planing tools.

Types, Specifications and Tolerances of Turning Inserts Type T3KG

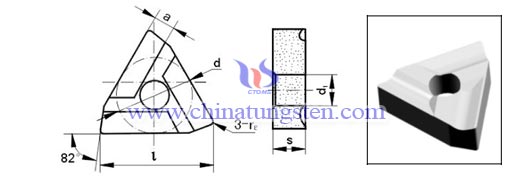

Turning Inserts Type F3KR(S)

They are suitable for making ?left & right hand, external turning tools and boring tools with offset shank

Types, Specifications and Tolerances of Turning Inserts Type F3KR(S)

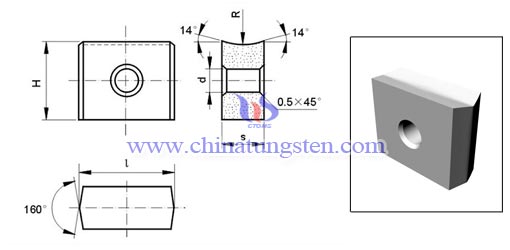

Turning Inserts Type ZL

They are suitable for making mechanically clamped heavy-duty tools, suitable for large lathes or vertical lathes

Types, Specifications and Tolerances of Turning Inserts Type ZL

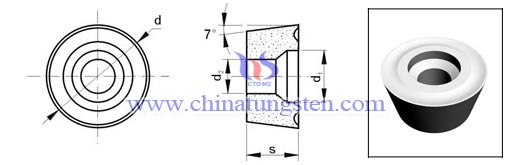

Turning Inserts Type R

They are suitable for making making tools for ball bearing guides and profile tools with countersunk hole,easy clamping

Types, Specifications and Tolerances of Turning Inserts Type R

All the cemented carbide milling inserts from Chinatungsten Online are customized.If you have any inquiry of our products, please feel free to contact us with sales@chinatungsten.com, sales@xiamentungsten.com. We are at service you.
