Brazed Tips C Series

Cemented carbide brazed tips are common cutting tools for metals embeded in cutting machines.They are generally used for turning inserts and milling inserts.

Cemented Carbide brazed tips are our main products.With good hardness under high temperature and good wear resistance, cemented carbide brazed tips are suitable for continuous or intermittent cutting of alloy steel with super strength.They are also suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron as well as profiling, threading and milling.

Various sizes of cemented carbide brazed tips type C are as follows:(unit:mm)

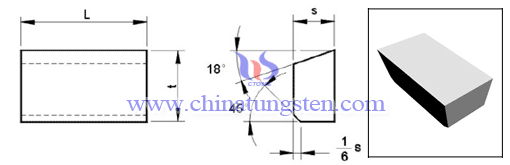

Brazed Tips Type C

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C

Various sizes of cemented carbide brazed tips type C1 are as follows:(unit:mm)

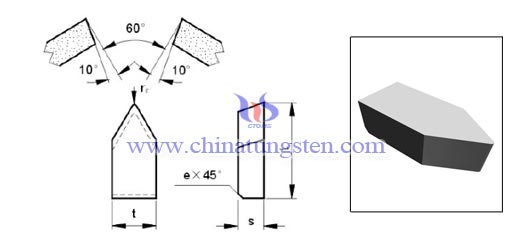

Brazed Tips Type C1

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C1

Various sizes of cemented carbide brazed tips type C2 are as follows:(unit:mm)

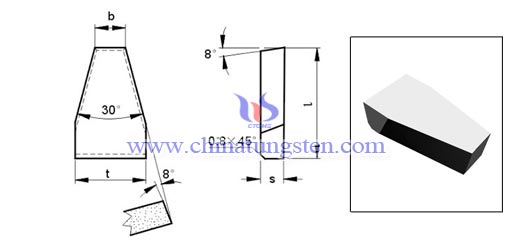

Brazed Tips Type C2

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C2

Various sizes of cemented carbide brazed tips type C3 are as follows:(unit:mm)

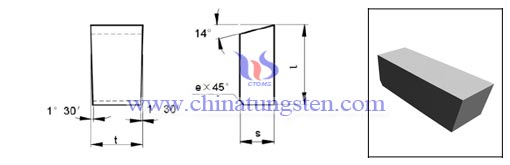

Brazed Tips Type C3

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C3

Various sizes of cemented carbide brazed tips type C4 are as follows:(unit:mm)

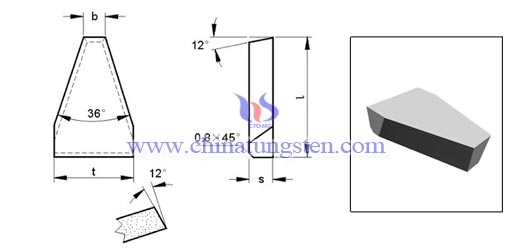

Brazed Tips Type C4

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C4

Various sizes of cemented carbide brazed tips type C5 are as follows:(unit:mm)

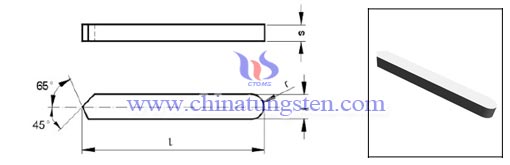

Brazed Tips Type C5

With good hardness under high temperature and good wear resistance,they are suitable for semi-finishing and finishing of steel, cast steel, forgeable cast iron and continuous nodular cast iron etc.

Types, Specifications and Tolerances of Brazed Tips Type C5

All the cemented carbide brazed tips from Chinatungsten Online are customized.If you have any inquiry of our products, please feel free to contact us with sales@chinatungsten.com, sales@xiamentungsten.com. We are at service you.
