Finished Cemented Carbide Roll Rings
1. Technical specifications of finished cemented carbide roll rings

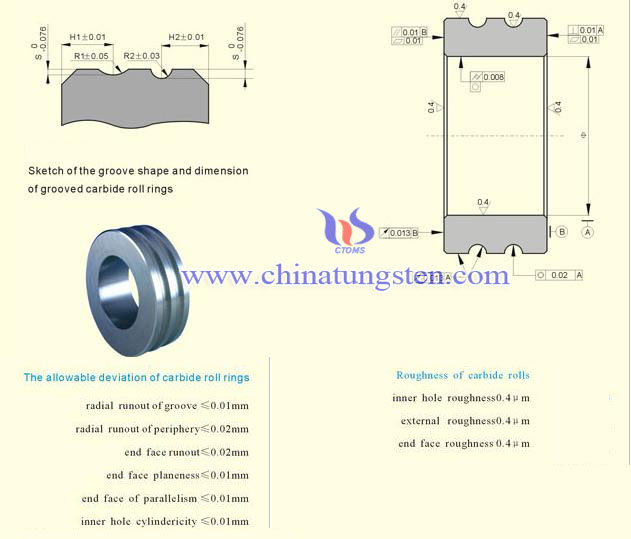

| The groove shape and allowable dexiation of dimensions for grooved cemented carbide rolls. |
 |

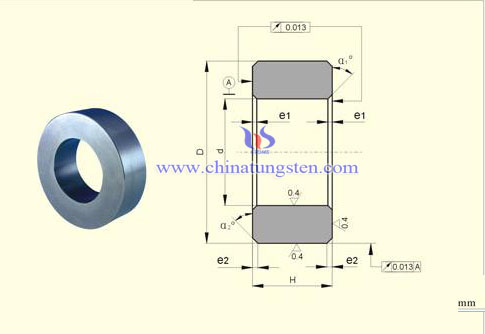

2.Dimensions and precision of the finished cemented carbide roll rings
 |
||
| External diameter（D） | Inner diameter（d） | Height（H） |
| 145-380 | 87-260 | 62-130 |
Note: We can supply them according to the drawing provided by customers.
| Outer Diameter(D) | Inner Diameter(+) | Height(-) | Inner Chamfer e1xa1 | Outer chamfer e2xa2 |
| 158.75 | +0.022+0.005 | +0.037-0.037 | 1.5× 450 | 5× 300 |
| 158.75 | +0.022+0.005 | +0.037-0.037 | 1.5×450 | 1×60 |
| 170.66 | +0.022+0.005 | +0.037-0.037 | 1.5×450 | 1×450 |
| 178.30 | +0.022+0.005 | +0.03-0.03 | 1.5×450 | 1.5×450 |
| 186.00 | +0.022+0.005 | +0.03-0.03 | 1.5× 450 | 3× 450 |
| 206.65 | +0.022+0.005 | +0.037-0.037 | 1.5× 450 | 1× 60 |
| 210.00 | +0.022+0.005 | +0.037-0.037 | 2× 450 | 0.5× 450 |
| 216.38 | +0.022+0.005 | +0.037-0.037 | 2× 450 | 3.5× 100 |
| 285.00 | +0.022+0.005 | +0.037-0.037 | 1× 450 | 1× 450 |
| 285.00 | +0.022+0.005 | +0.03-0.03 | 1× 450 | 1× 450 |
| 365.00 | +0.022+0.005 | +0.03-0.03 | 1× 450 | 1× 450 |
Chinatungsten Online can provide various sizes and grades of cemented carbide products,deep processing and mold design and production , non-standard products can also be customized according to customer requirements. Welcome to consult and purchase sales@chinatungsten.com, sales@xiamentungsten.com .
