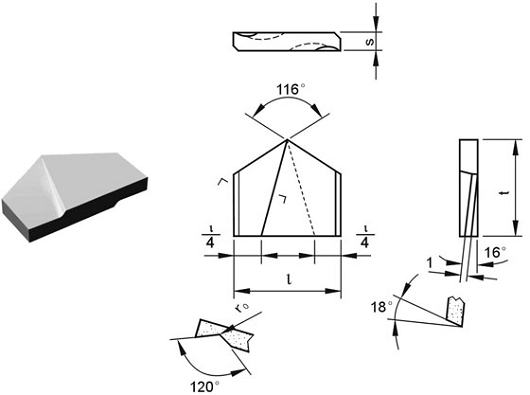

Weld Tips-Type E2
| Type | Dimension(mm) | Approx Unit Weight(g) | ||||||
| l | t | s | r0 | YG6 | YG8 | YT5 | YT14 | |
| E210 | 10.8 | 9.0 | 2.0 | 1.0 | 2.1 | 2.0 | 1.8 | 1.6 |
| E211 | 11.8 | 10.0 | 2.5 | 1.0 | 3.3 | 3.3 | 2.6 | 2.4 |
| E213 | 13.0 | 11.0 | 2.5 | 1.0 | 3.3 | 3.8 | 3.3 | 3.0 |
| E214 | 14.0 | 12.0 | 2.5 | 1.0 | 4.6 | 4.5 | 3.8 | 3.5 |
| E215 | 15.0 | 13.0 | 2.5 | 1.0 | 5.2 | 5.1 | 4.4 | 4.0 |
| E216 | 16.0 | 14.0 | 3.0 | 1.0 | 7.3 | 7.2 | 6.1 | 5.5 |
| E217 | 17.0 | 15.0 | 3.0 | 1.5 | 8.2 | 8.1 | 6.9 | 6.3 |
| E218 | 18.0 | 16.0 | 3.0 | 1.5 | 9.1 | 9.0 | 7.8 | 7.1 |
| E219 | 19.0 | 17.0 | 3.0 | 1.5 | 10.3 | 10.2 | 8.7 | 7.9 |
| E220 | 20.0 | 18.0 | 3.5 | 1.5 | 13.6 | 13.4 | 11.2 | 10.2 |
| E221 | 21.0 | 18.0 | 3.5 | 1.5 | 14.3 | 14.1 | 11.7 | 10.7 |
| E222 | 22.0 | 18.0 | 3.5 | 1.5 | 14.7 | 14.5 | 11.2 | 11.1 |
| E223 | 23.0 | 18.0 | 4.0 | 1.5 | 17.7 | 17.5 | 14.5 | 13.2 |
| E224 | 24.0 | 18.0 | 4.0 | 1.5 | 18.4 | 18.2 | 15.0 | 13.7 |
| E225 | 25.0 | 22.0 | 4.5 | 2.0 | 26.2 | 25.7 | 19.8 | 18.0 |
| E226 | 26.0 | 22.0 | 4.5 | 2.0 | 26.3 | 26.0 | 20.5 | 18.5 |
| E227 | 27.5 | 22.0 | 4.5 | 2.0 | 29.5 | 29.2 | 21.5 | 19.5 |
| E228 | 28.5 | 22.0 | 4.5 | 2.0 | 30.0 | 29.0 | 22.0 | 20.0 |
| E229 | 29.5 | 24.0 | 5.0 | 2.0 | 38.5 | 37.5 | 28.0 | 25.5 |
| E230 | 30.5 | 24.0 | 5.0 | 2.0 | 39.0 | 38.0 | 29.0 | 26.5 |
| E231 | 31.5 | 24.0 | 5.0 | 2.0 | 40.0 | 39.0 | 29.5 | 27.0 |
| E233 | 33.5 | 26.0 | 5.0 | 2.0 | 46.0 | 45.5 | 34.5 | 31.0 |
| E236 | 36.5 | 26.0 | 5.0 | 2.0 | 50.0 |
49.0 | 37.0 | 33.5 |
| E239 | 39.5 | 26.0 | 5.0 | 2.0 | 53.0 | 52.0 | 39.0 | 35.5 |
| E242 | 42.0 | 28.0 | 6.0 | 2.0 | 72.5 | 71.0 | 54.0 | 49.5 |
| E244 | 44.0 | 28.0 | 6.0 | 2.0 | 75.0 | 74.0 | 56.0 | 51.0 |
| E247 | 47.0 | 28.0 | 6.0 | 2.0 | 78.0 | 77.0 | 59.0 | 54.0 |
| E250 | 50.0 | 30.0 | 6.0 | 2.0 | 89.0 | 88.0 | 68.0 | 62.0 |
| E252 | 52.0 | 30.0 | 6.0 | 2.0 | 91.0 | 90.0 | 82.5 | 73.2 |
