Finished Tungsten Carbide Rollers Dimension And Accuracy

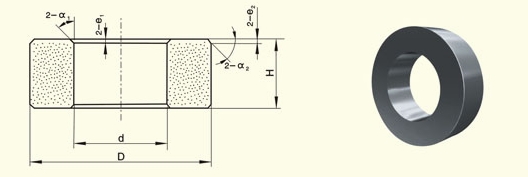

Dimension range of finished rolls
| External diameter(D) | Inner diameter(d) | Heigh(H) |
| 148-500 | 87-300 | 20-250 |
Tolerances allowable for the O.D.,I.D.and height of roll ring
| Grade | I | II | III | IV | |
| Out diameter(D) | ±0.02 | ±0.05 | ±0.10 | ±0.15 | Special request |
| Inner diameter(d) | +1T5 | +1T6 | +1T7 | +1T8 | |
| Height(H) | -0.03 | -0.10 | -0.20 | -0.50 |
Note:Products can be manufactured based on the drawing supplied by the customer.
